Hydraulic Heat Exchanger Maintenance Equipment

Tube Bundle Extractor & Bundle Puller Manufacturer

15T–125T hydraulic tube bundle extractors for refinery and petrochemical heat exchanger maintenance. Also called bundle pullers or tube bundle pullers, diesel and electric models are matched to bundle weight, length and diameter.

Request Technical Proposal View Technical Parameters
Pulling Capacity
15T–125T
Eight JCD capacity references for different tube bundle loads.
Power Options
Diesel / Electric
Selected according to site power supply and maintenance conditions.
Bundle Range
Project Matched
Bundle length and diameter are matched to the selected model and project.
Applications
Refinery / Petrochemical
For heat exchanger bundle extraction during maintenance and turnaround work.
Model Selection

Choose Pulling Capacity, Then Review Full Parameters

Use the existing JCD capacity range as a first reference. Final model selection is based on bundle weight, length, diameter, working height, access and site conditions.

Reference Data

Technical Parameter Reference

We recommend the final model according to tube bundle weight, tube bundle length, tube bundle diameter, operating space, site accessibility, power supply, and actual maintenance conditions.

Request Model Matching
Model Bundle Length
(mm)		 Bundle Diameter
(mm)		 Pulling Capacity /
Maximum Force (T)		 Maximum Load
(T)		 Approx. Equipment Weight
(t)		 Overall Dimensions
L × W × H (mm)		 Total Power
(kW)
JCD15T 6000 1000 15 15 3.9 9600×1200×1200 Electric: 9 kW
JCD25T 6000 1200/1400 25 25 Subject to final
configuration		 8600×1450×1200 36.5
JCD35T 6000/9000 1400/1600 35 35 Subject to final
configuration		 8600/11760×1500×2360 36.5
JCD45T 6000/9000/12000 1800/2000/2200 45 45 Subject to final
configuration		 8600/11760/14370×1500×2360 36.5
JCD65T 9000/12000 2000/2200/2500 65 65 Subject to final
configuration		 11760/14370×1500×2360 36.5
JCD85T 9000/12000 2500/2800/3000 85 85 Subject to final
configuration		 14370×1500×2360 36.5
JCD100T 12000 2500/2800/3000 100 100 Subject to final
configuration		 14370×1500×2360 36.5
JCD125T 12000/15000 3000 125 125 Subject to final
configuration		 14370/17370×1500×2360 36.5

Swipe or scroll horizontally to review all technical columns.

Product Advantages

Why Choose Our Tube Bundle Extractor

Heavy-Duty Pulling Capacity

The existing JCD model range covers 15T–125T maximum pulling force for different heat exchanger bundle sizes and loads.

Project-Based Configuration

Model and configuration are matched to bundle weight, length, diameter, operating space, site accessibility and available power.

Factory Testing Before Delivery

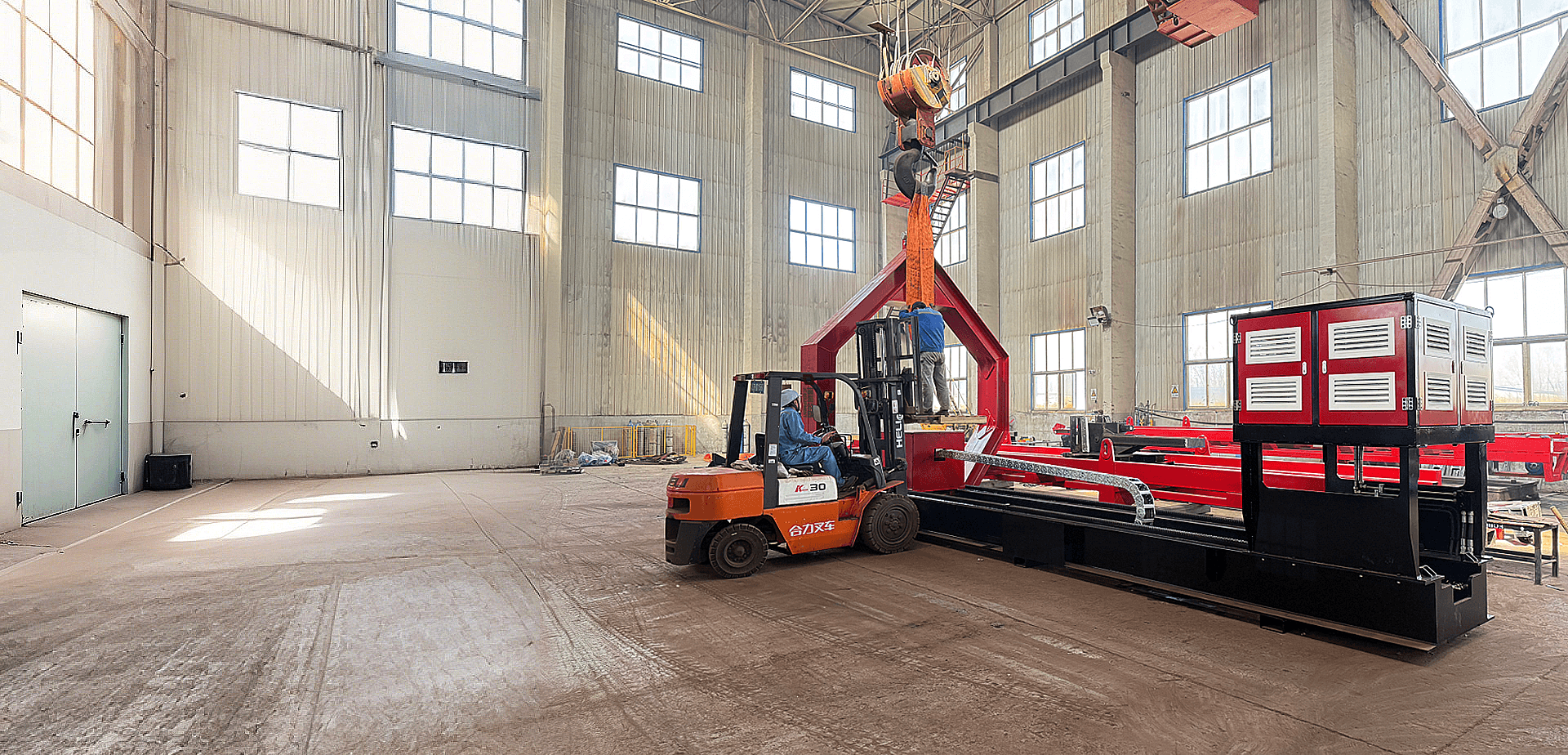

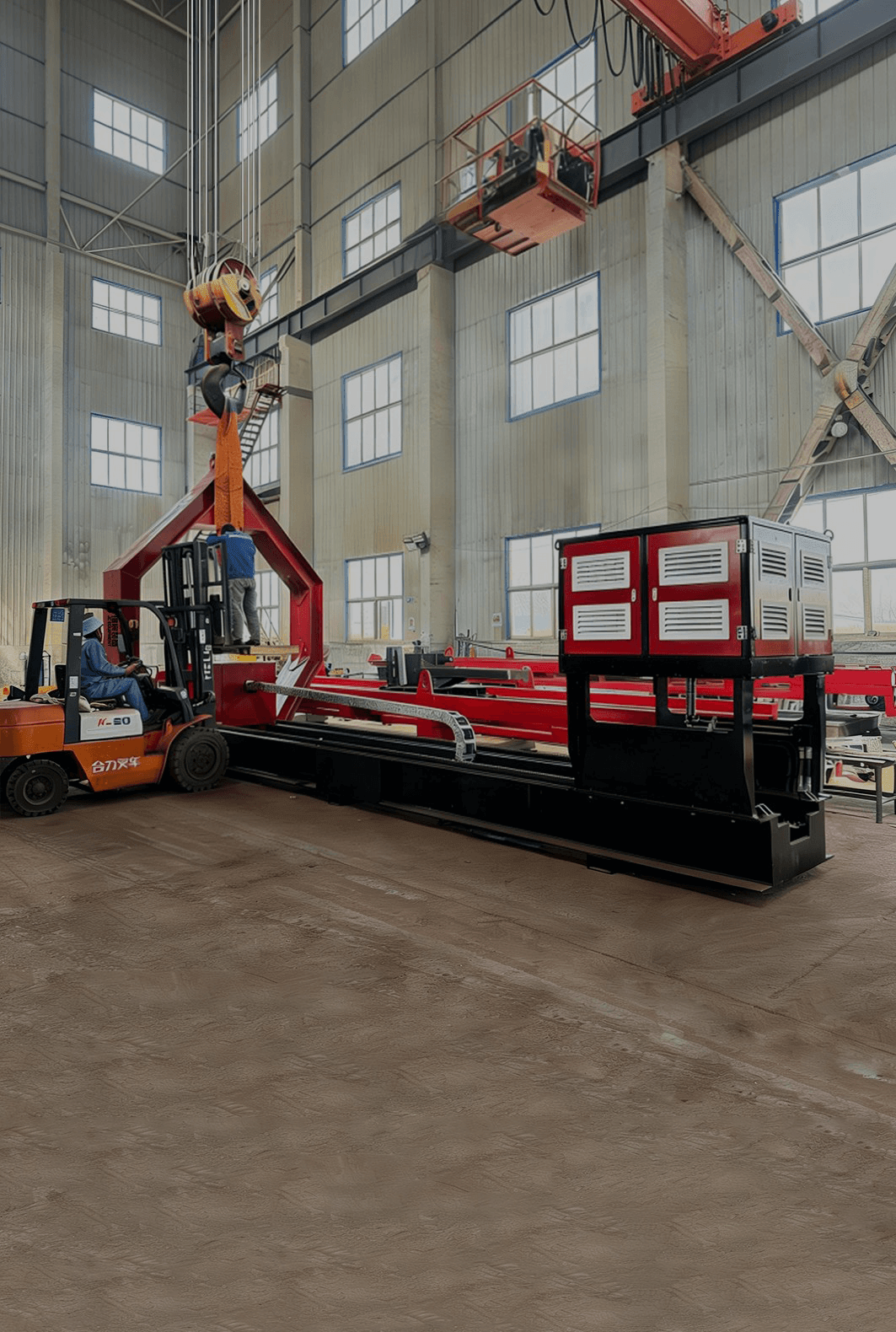

Assembly, frame hoisting and functional checks are completed before delivery, with real equipment records shown below.

Remote Operation

Wireless remote control is available in the equipment configuration shown on this page; final control options depend on the selected configuration.

Service & Spare Parts Support

Inspection, troubleshooting, spare parts and technical support are available through our maintenance and repair service.

Refinery Maintenance Application

Designed for heat exchanger bundle extraction during refinery and petrochemical turnaround and maintenance work.

Request a Quote

Tell Us About Your Project

Share your bundle dimensions and site conditions. We’ll recommend a suitable extractor configuration.

Bundle DataWeight, length and diameter
Site ConditionsWorking height, access and available space
Power OptionDiesel or electric
WhatsApp / Phone: +86 130 8415 8090 Email: info@jingchenpetro.com
Message Form

Request Technical Proposal

Share your contact details and project requirements. We’ll recommend a suitable configuration.

Please enable JavaScript in your browser to complete this form.
Questions

Procurement & Model Selection FAQs

Answers based on the current model table, equipment records and service information.

Please provide bundle weight, length and diameter, together with working height, maintenance space, site access, available power and project country. Drawings or exchanger layout information can help with final model and configuration review.
Yes. The existing parameter table lists several regular bundle lengths and normal diameters across the JCD model range. Final matching depends on bundle load, dimensions, operating space and the selected machine configuration.
They are common names for the same type of bundle pulling equipment. Depending on the market, it may also be called a bundle extractor, tube bundle puller or heat exchanger bundle puller. Model selection should be based on technical conditions, not the search term used.
Diesel configurations are generally considered where fixed power is limited or site movement is important. Electric configurations suit locations with an appropriate stable power supply. Confirm site power, access and operating conditions before choosing.
Yes. The model review can account for bundle dimensions, operating space, site accessibility, power supply and actual maintenance conditions. The final job method and safety plan remain project-specific.
Yes. The current maintenance and repair service covers inspection, hydraulic troubleshooting, spare parts and technical support. Share the machine model and issue details so the requirement can be reviewed.
Existing equipment records on this page show assembly checks, frame hoisting inspection, control-system review and a final functional check before delivery. The exact inspection scope follows the selected configuration.
